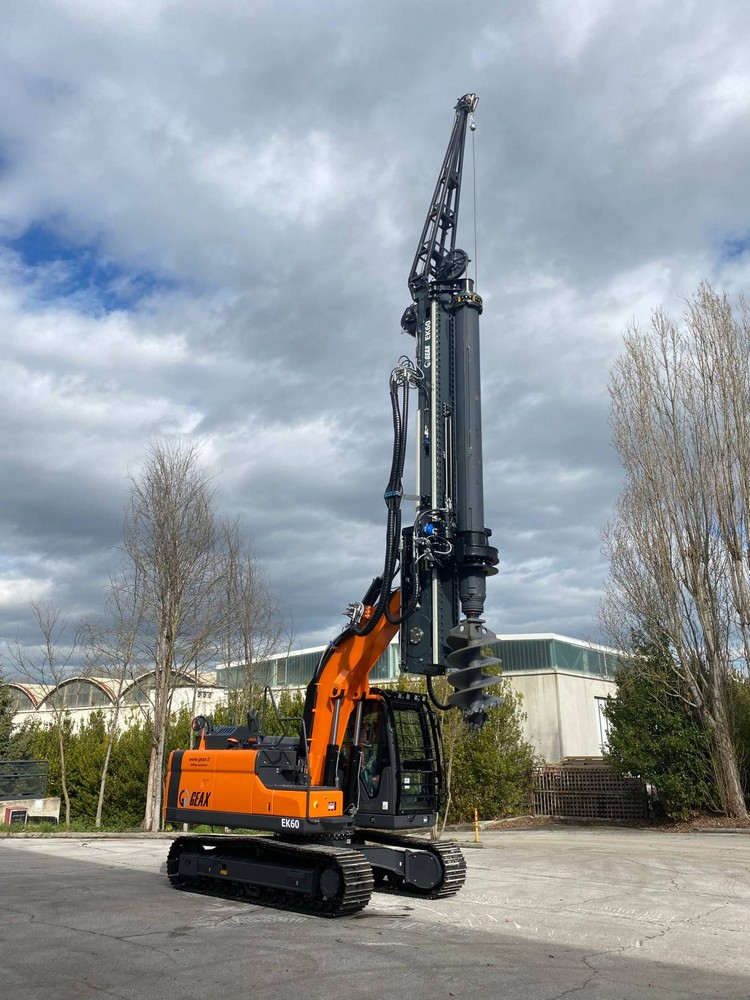

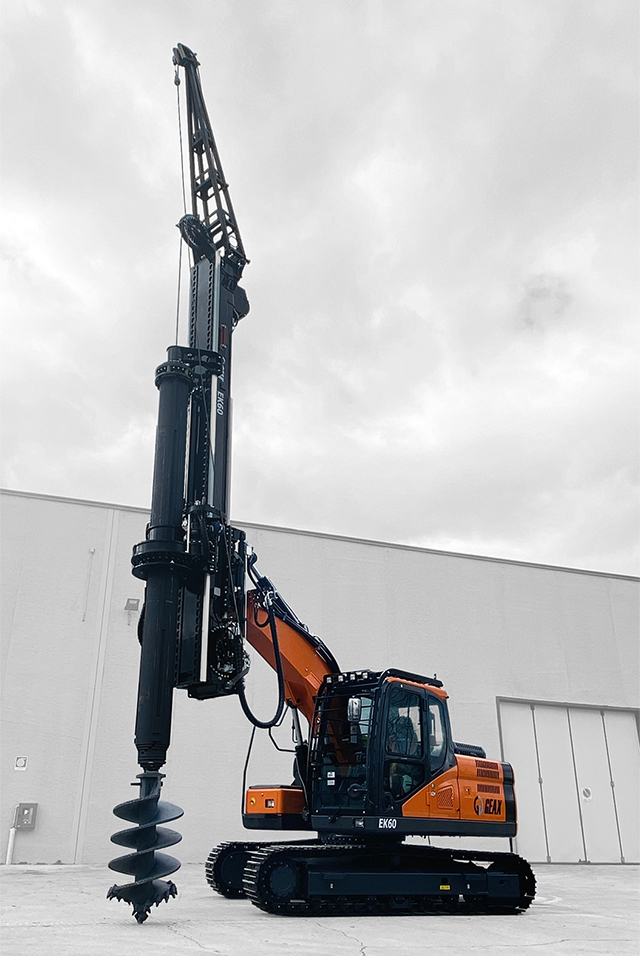

GEAX-ek60-p
- Share
Year
2024
Manufacturer
Geax
Price
Contact Us For Pricing
Model
EK60
Condition
New
| Base | |
| Engine power | 86 kW – 115 hp |
| Undercarriage length | 3.755 mm – 12.3 ft |
| Width over tracks | 2.490 mm – 8.2 ft |
| Mast | |
| Forward inclination | >10° |
| Backward inclination | >10° |
| Lateral inclination | ±6.5° |
| Mast vertical stroke | 1.600 mm – 5.25 ft |
| Rotary | |
| Nominal torque | 55 kNm – 40.565 lbfft |
| Drilling speed | 10 ÷550 rpm |
| Rotary stroke | 1.400 mm – 4.6 ft |
| Winches | |
| Main winch line pull | 82 kN – 18.440 lbf |
| Aux winch line pull | 33 kN – 7.420 lbf |
| Crowd system | |
| Pull down force | 105 kN – 23.600 lbf |
| Extraction force | 110 kN – 24.730 lbf |
| Total rotary stroke | 3.000 mm – 9.85 ft |
| Excavation | |
| Max pile diameter | 1.200 mm – 48 in |
| Max pile depth | up to 28 m – 92 ft |
| Min working headroom* | 5.300 mm – 17.4 ft |
| Transport | |
| Length | 8.900 mm – 29.2 ft |
| Width | 2.490 mm – 8.2 ft |
| Height | 2.900 mm – 9.5 ft |
| Weight | 21.000 kg – 46.300 lb |
*depending on the configuration
