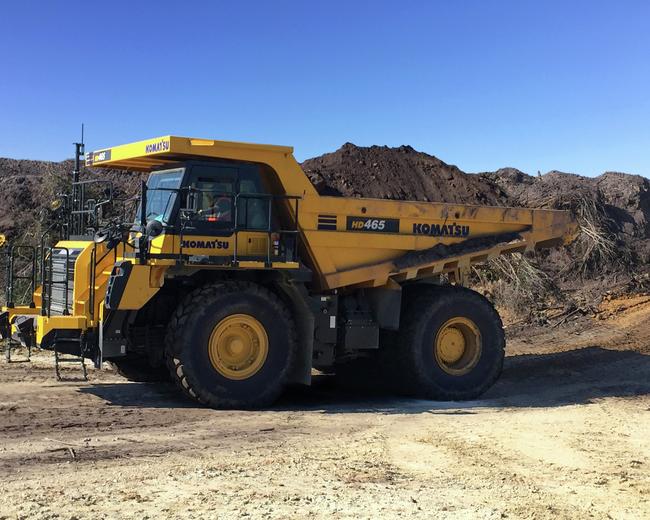

KOMATSU HD465-8
- Share
Year
2024
Manufacturer
Komastu
Model
HD465-8
Condition
New
Maneuverability that makes you take notice
The HD465-8 delivers a tight turning radius and optimal traction in a variety of ground conditions. A seven-speed, fully automatic transmission with skip shift gives this truck the power and speed to help you meet your demanding production needs.
- Up to 12% reduction in fuel consumption*
- Up to 5% more productive*
- Enhanced serviceability*
- Improved operator environment*
*Compared to HD465-7
Engine
| Model | Komatsu SAA6D170E-7* |
| Type | Water-cooled, 4-cycle |
| Aspiration | Variable geometry, turbo-charged, air-to-air after-cooled, cooled Exhaust Gas Recirculation (EGR) |
| Number of cylinders | 6 |
| Bore x stroke | 6.69 x 6.69 in |
| Piston displacement | 1,413 in3 |
| Horsepower: | |
| SAE J1995 | 775 HP |
| ISO9249/SAE J1349 | 724 HP |
| Rated rpm | 2,000 rpm |
| Fan drive type | Hydraulic |
| Maximum torque | 2,688 lbs.-ft. |
| Fuel system | Direct injection |
| Governor | Electronically controlled |
| Lubrication system: | |
| Method | Gear pump, force-lubrication |
| Filter | Full-flow type |
| Air cleaner | Dry type with double elements and precleaner (cyclone pack type), and evacuator valve |
*EPA Tier 4 Final emissions certified
Transmission
| Torque converter | Three-elements, one-stage, two-phase |
| Transmission | Full-automatic, planetary type |
| Speed range | Seven speeds forward and one reverse |
| Lockup clutch | Wet, multiple-disc clutch |
| Forward | Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears |
| Reverse | Torque converter drive |
| Shift control | Electronic shift control with automatic clutch modulation in all gears |
| Maximum travel speed | 43.5 mph |
Axles
| Rear Axle | Full-floating |
| Final drive type | Planetary gear |
| Ratios: | |
| Differential | 3.538 |
| Planetary | 4.737 |
Suspension System
Independent, hydro-pneumatic suspension cylinder with fixed throttle to dampen vibration.
| Effective cylinder stroke (front suspension) | 11.9 in |
| Rear axle oscillation: | |
| Oil stopper | 6.8° |
| Mechanical stopper | 7.7° |
Steering System
| Type | Fully hydraulic power steering with two double-acting cylinders |
| Supplementary steering | Manually controlled (meets ISO 5010) |
| Minimum turning radius | 28 ft. 6 in |
| Maximum steering angle (outside tire) | 39° |
Cab
Dimensions comply with ISO 3471 ROPS (Roll-Over Protective Structure) standards.
Brakes
Brakes meet ISO 3450 standards.
| Service brakes: | |
| Front | Dry type, single disc type full hydraulic |
| Rear | Oil cooled, multiple disc type full hydraulic |
| Parking brake | Oil cooled, multiple disc type, spring operated, hydraulic releasing type |
| Retarder | Oil cooled, multiple disc type full hydraulic |
| Secondary brake | Manual pedal operation when hydraulic pressure drops below the rated level, parking brake is automatically actuated |
Main Frame
Type
Box-sectioned structure
Body
| Capacity: | |
| Struck | 32.7 yd³ |
| Heaped (2:1, SAE) | 44.7 yd³ |
| Payload | 61 US tons |
| Material (high tensile strength steel) | 184,900 psi |
| Material thickness: | |
| Bottom | 0.75 in |
| Front | 0.47 in |
| Sides | 0.35 in |
| Target area: (inside length x width) | 21 ft. 2 in x 12 ft. 8 in |
| Dumping angle | 48° |
| Height at full dump | 28 ft. 10 in |
| Heating | Exhaust heating |
Hydraulic System
| Hoist cylinder | Twin, two-stage telescopic type |
| Relief pressure | 2,990 psi |
| Hoist time | 11.5 s |
Weight (approximate)
| Empty weight | 106,748 lbs. |
| Nominal gross vehicle weight: | |
| Standard tire | 228,178 lbs. |
| *Max. gross vehicle weight: | |
| Standard tire | 252,429 lbs. |
| Weight distribution: | |
| Empty: | |
| Front axle | 53% |
| Rear axles | 47% |
| Loaded: | |
| Front axle | 34% |
| Rear axles | 66% |
*When payloads are managed per Komatsu's 10-10-20 payload policy
Tires
Standard tire: 24.00 R35
Service Refill Capacities
| Fuel tank | 211.3 US gal |
| Engine oil | 21.1 US gal |
| Torque converter, transmission and retarder cooling | 56.8 US gal |
| Differential | 25.1 US gal |
| Final drives (total) | 11.1 US gal |
| Hydraulic system | 39.4 US gal |
| Suspension (total) | 17.5 US gal |
ENGINE:
- Air cleaner, dry type, two stage (qty two)
- Automatic Idling Setting System (AISS)
- Auto Idle Shutdown
- Electric priming fuel pump
- Engine secondary stop switch
- Engine, Komatsu SAA6D170E-7, six cylinder, turbocharged, air/air aftercooled, EGR cooled, diesel; Gross HP (SAE J1995): 775HP / 2000 RPM; Net HP (ISO
- 9249/SAE J1349): 724HP / 2000 RPM
- Fan, hydraulically driven, reversible
- Komatsu Diesel Particulate Filter (KDPF) (qty two)
- Starting aid, intake manifold pre-heater
- Variable geometry turbocharger
ELECTRICAL SYSTEM:
- Alternator, 90 ampere , 24 volt
- Back-up alarm
- Batteries, 4 x 12 volt 240 Ah, 910 CCA
- Battery disconnect switch
- Horn, electric
- Lights
- Back-up light, rear
- Engine compartment ligh
- Head lights, halogen (high and low beam)
- Side working lights, LH and R
- Stop and tail lights (LED)
- Turn signal, (two front, two rear) (LED) with hazard switch - Starting motors, 2 x 7.5W direct electric 24V
POWER TRAIN AND CONTROLS:
- Seven-speed transmission, fully automatic with K-ATOMiCS
- Komatsu Traction Control System (KTCS)
- Front brake, twin caliper, disc type
- Parking brake
- Rear brake, oil cooled, multiple disc, fully hydraulic controlled
- Skip shift function
OPERATOR ENVIRONMENT:
- Cab, with built in ROPS/FOPS
- 12 Volt outlet (qty two)
- Automatic climate control system with cab pressurization
- Auxiliary steering system
- Beverage holder (qty two)
- Body hoist control, electric
- Cigarette lighter and ashtray
- Dome light and reading light
- Door, LH and RH
- Lunch box tray and storage trays
- Machine monitor with seven-inch color LCD display
- Operator seat, air suspension type, heated, ventilated, with three-point retractable seat belt (3" wide lap belt and 2" wide, high visibility shoulder belt)
- Power windows, LH and RH
- Radio, AM/FM with aux terminal
- Rearview mirror, outside cab mount, heated (LH & RH)
- Rearview monitoring system with dedicated monitor
- Steering wheel, tilt and telescopic
- Sun visor (qty two)
- Tinted glass (front, laminated glass)
- Trainer seat, folding, with two-point retractable seat belt (3" wide)
- Wiper/washer, front, with intermittent setting
GUARD AND COVER GROUP:
- Catwalk with handrails
- Deck rail
- Driveline guards, front & rear
- Engine underguard
- Exhaust thermal guard
- Front handrail, over radiator
- Mudguards
- Transmission underguard
MONITORING SYSTEM, ELECTRONIC DISPLAY ITEMS:
- Instrument panel gauges
- Coolant temperature
- Hour meter (service meter)
- Retarder oil temperature
- Speedometer with odometer
- Tachometer
- Torque converter oil temperature - Warning lights
- Engine coolant temperature
- Engine coolant level
- Engine oil pressure
- Parking brake
- Retarder oil temperature
- Torque converter oil temperature
OTHER:
- Angled front stairs with hand rails
- Automatic retarder speed control (ARSC)
- Centralized lube block
- Dump counter
- Ecology guidance and ecology gauge
- Fast-fill coupler for fuel tank
- Filler cap and cover locks
- Front brake cut-off system
- Hydropneumatic suspension (front & rear)
- Less body (must select body)
- Mirror, rearview, underview
- PM service connectors
- Rock ejector bars
- KOMTRAX Plus® telematics package with integrated payload meter (PLM), satellite communication and WiFi
- Wheel chocks with storage brackets
BODY:
- Alternate exhaust configuration (RH side discharge)
- Body
- Body liner
TIRES (24.00 R35):
- Michelin XDTB
- Bridgestone VRLS
- Michelin X-Quarry
- Michelin X-Traction Super Terrain
