KOMATSU D39PXI-24
- Share
2024
Komastu
D39PXI-24
New
Ontario
Powerful, versatile and yes, nimble

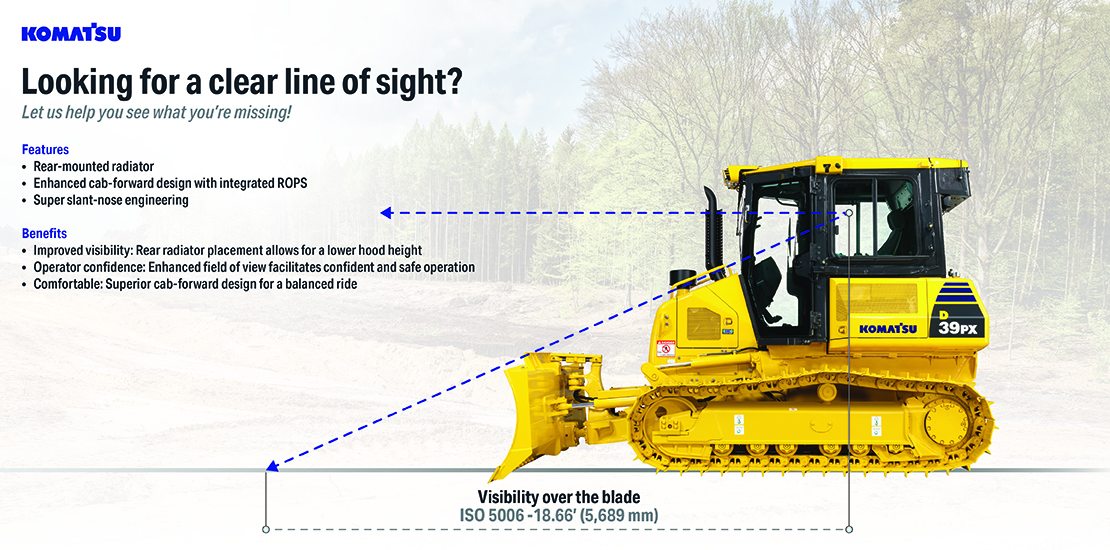

If you want a dozer that’s equally at home performing heavy site prep and accurate fine work, this model is an excellent choice. Powered by a fuel efficient, environmentally friendly EPA Tier 4 Final certified engine, it offers your operators a quiet, comfortable cab that provides unrivaled blade visibility. It’s engineered to get jobs done quickly and accurately with its outstanding blade response, fast work equipment speed, an additional “fast-blade mode” that boosts blade speed for high-speed grading, and surprising maneuverability via full power to both tracks during turns or counter rotation steering.
- Get new operators up to speed quickly
- Go from mass ex to finished grading faster than ever
- Fully integrate 3D design data into your machines
- Empower operators to work efficiently, pass after pass
Engine
| Model | Komatsu SAA4D95LE-7* |
| Type | 4-cycle, water-cooled, direct injection |
| Aspiration | Variable flow turbocharged, air-to-air aftercooled |
| Number of cylinders | 4 |
| Bore x stroke | 3.75 x 4.52 in |
| Piston displacement | 199 in³ |
| Governor | All-speed, electronic |
| Horsepower: | |
| SAE J1995 - Gross | 107 HP |
| ISO 9249 / SAE J1349 - Net | 105 HP |
| Rated rpm | 2,200 rpm |
| Fan drive type | Hydraulic |
| Lubrication system: | |
| Method | Gear pump, force lubrication |
| Filter | Full-flow |
| *EPA Tier 4 Final emissions certified |
Hydrostatic transmission
Dual-path, hydrostatic transmission provides infinite speed changes up to 5.3 mph. The variable capacity travel motors allow the operator to select the optimum speed to match specific jobs. Travel control lock lever and neutral switch.
| Travel speed (quick shift mode)* |
Forward | Reverse |
| 1st | 0–2.1 mph | 0–2.5 mph |
| 2nd | 0–3.5 mph | 0–4.0 mph |
| Travel speed (variable mode) |
0–5.3 mph | 0–5.3 mph |
*Quick shift speeds are adjustable in the monitor.
Final drive
Steering system
Palm Command Control System (PCCS) joystick control for all directional movements. Pushing the joystick forward results in forward machine travel, while pulling it back reverses the machine. Simply tilt the joystick to the left or right to make a turn. Tilting the joystick fully to the left or right activates counter-rotation.
Hydrostatic Transmission (HST) provides smooth, powerful turns. Fully electronic control enables smooth control that can be adjusted in the monitor. The PCCS utilizes shift buttons to increase and decrease speed.
| Minimum turning radius* | 94 in |
*As measured by track marks on the ground at pivot turn.
Undercarriage
Suspension: Rigid type
Track roller frame: Monocoque, large section, durable construction
Rollers & idlers: Lubricated track rollers
Sealed & lubricated track: Track tension easily adjusted w/grease gun
|
D39PX-24 Narrow |
D39PX-24 Wide |
|
| Number of track rollers (each side) | 6 | 6 |
| Type of shoes (standard) | Single grouser | Single grouser |
| Number of shoes (each side) | 39 | 39 |
| Grouser height | 1.9 in | 1.9 in |
| Shoe width (standard) | 25 in | 27.5 in |
| Ground contact area | 4,616 in² | 5,110 in² |
| Ground pressure (with dozer, ROPS cab) |
4.39 psi | 3.98 psi |
| Track gauge | 5 ft. 11 in | 5 ft. 11 in |
| Length of track on ground | 7 ft. 8 in | 7 ft. 8 in |
Service refill capacities
| Coolant | 9.0 US gal |
| Fuel tank | 50.2 US gal |
| Engine oil | 2.9 US gal |
| Hydraulic tank | 17 US gal |
| Final drive (each side) | 0.9 US gal |
| Diesel Exhaust Fluid (DEF) tank | 2.6 US gal |
Operating weight (approximate)
| Tractor weight: Including ROPS cab, U frame for power angle tilt dozer, rated capacity of lubricant, coolant, full fuel tank, operator, and standard equipment. |
20,282 lbs. |
| Operating weight: Operating weight: Including power angle tilt dozer, ROPS cab, operator, standard equipment, rated capacity of lubricant, coolant, and full fuel tank. |
22,950 lbs. |
- Accumulator for Electric Proportional Control (EPC)
- Air cleaner, dry, double element type with caution lamp on monitor
- Air conditioner (A/C)
- Air inlet
- Alternator, 24 V/85 A
- Back-up alarm
- Batteries, large capacity 24 V/92 Ah
- Cab accessories
- 12 V 2 power supply
- Cup holder
- Rear view mirror
- Rear view monitor system
- Bluetooth/USB compatible radio with remote AUX plug (3.5 mm)
- Crankcase guard and underguard
- Decelerator/brake pedal (Single pedal)
- Electronically controlled Hydrostatic
Transmission (HST) with quick-shift and variable speed settings - Electronic monitor panel with on-board diagnostics
- Engine hood and side panels
- Engine, KOMATSU SAA4D95LE-7, gross output of 107 HP, direct injection, water-cooled turbocharged, air-to-air aftercooler, cooled EGR, EPA Tier 4 Final and EU Stage 4 emissions certified
- Fan, hydraulic driven, electronic control
- Filler cap locks and cover locks
- Foot rest, high mounted
- Fuel pre-filter (10 micron) and fuel filter (2 micron)
- Grease gun holder
- High altitude arrangement (No fuel adjustment up to 2300 m)
- Horn
- Hydraulics for PAT dozer
- Intake pipe with precleaner
- Large high-resolution LCD
- LED worklights
- Lunch box holder
- Marks and plates, English
- New Operator Identification System
- Palm Command Control System (PCCS) with electronic control for travel control
- Palm Command Control System (PCCS) with EPC for blade control
- Power turn with counter rotation
- Pullhook, front
- Radiator guard grid
- Radiator reserve tank
- Real-time DEF monitoring
- Rear-hinged radiator guard
- Reverse travel speed presets
- ROPS cab
Meets ISO 3471, SAE J/ISO 3471 ROPS standards, and ISO 3449 FOPS standard. - Seat belt, 3" retractable
- Seat, air suspension, fabric, heated, low back, headrest
- Starting motor, 24 V/4.5 kW
- Self adjusting roller
- Sprockets, bolt-on
- Sprocket inner guard
- Track roller guards, end section
- Track shoe assembly (PLUS)
—Heavy-Duty lubricated rotary bushing- D39EXi-24: 20" single grouser shoe
- D39PXi-24: 25" single grouser shoe
- Triple labyrinth final drive
- Water separator
- Dozer assembly
- Hitch
- Hydraulics for rear equipment
- Track roller guard, full length
- 27.5" single grouser (PX)(PLUS)
