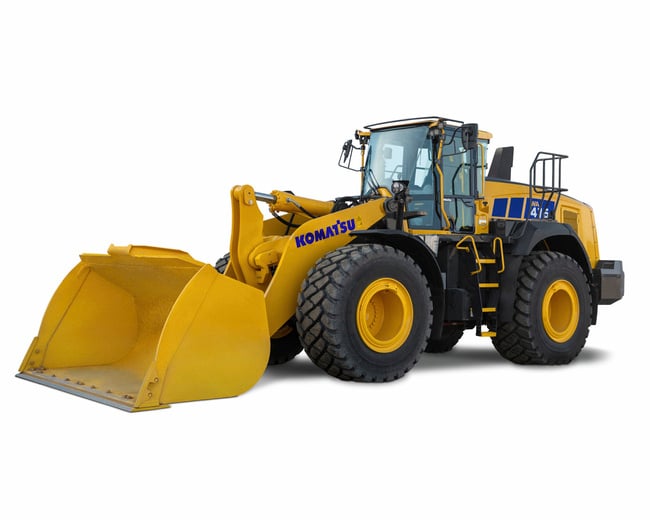

Komatsu WA475-11
- Share
Year
2025
Model
wa475-11
Condition
New
Next-level performance and economy
The Komatsu WA475-11 builds upon the award-winning and popular WA475-10 and adds new features and design refinements that take this workhorse to a new level of operational efficiency. The result is a solid and reliable wheel loader engineered for fuel efficiency, engine power and climbing speed enhancements.
- 7% lower fuel consumption
- 18% more engine power
- 40% greater climbing speed (on a 6° slope)
- Compared to the WA475-10
Engine
Engine
| Model | Komatsu DBA127 |
| Type | Water-cooled, 4-cycle |
| Aspiration | Turbo-charged, after-cooled |
| Number of cylinders | 6 |
| Bore x stroke (in) | 5.1 x 6.3 |
| Piston displacement | 12.74 L |
| Governor | All-speed, electronic |
| Horsepower: | |
| SAE J1995 - Gross | 345 HP |
| ISO 14396 | 345 HP |
| ISO 9249 / SAE J1349* | 343 HP |
| Rated rpm | 1,600 rpm |
| Fan drive method for radiator cooling | Hydraulic |
| Fuel system | Direct injection |
| Lubrication system: | |
| Method | Gear pump, force-lubrication |
| Filter | Full-flow type |
| Air cleaner | Dry type with double elements and dust evacuator, plus dust indicator |
| * Net horsepower at the maximum speed of radiator cooling fan is 328 HP (245 kW). U.S, EPA Tier 4 Final and EU Stage V emissions certified. |
Transmission
Transmission
Transmission: Hydraulic mechanical planetary type
| Travel speed: (Measured with 26.5R25 tires) |
|
| Forward | 3.0 – 38.0 km/h |
| Reverse | 3.0 – 28.0 km/h |
Axles and Final Drives
Axles and Final Drives
| Drive system | Four-wheel drive |
| Front | Fixed, semi-floating |
| Rear | Center-pin support, semi-floating, 26° total oscillation |
| Reduction gear | Spiral bevel gear |
| Differential gear | Conventional type |
| Final reduction gear | Planetary gear, single reduction |
Brakes
Brakes
| Service brakes | Hydraulically actuated, wet multiple-disc brakes actuate on four wheels |
| Parking brake | Wet multiple-disc brake |
| Secondary brake | One of dual service brake circuits is commonly used |
Steering System
Steering System
| Type | Articulated type, full-hydraulic power steering |
| Steering angle | 35° each direction (40° end stop) |
| Minimum turning radius at the center of outside tire | 21 ft. 9 in |
Hydraulic System
Hydraulic System
| Steering system: | |
| Hydraulic pump | Piston pump |
| Capacity | 157.7 L/min |
| Relief valve setting | 24.5 MPa / 250 kgf/cm² |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders | 2 |
| Bore x stroke | 3.75 x 17.4 in |
| Loader control: | |
| Hydraulic pump | Piston pump |
| Capacity | 333 L/min |
| Relief valve setting | 35.3 MPa / 360 kgf/cm² |
| Hydraulic cylinders: | |
| Type | Double-acting, piston type |
| Number of cylinders — Bore x Stroke: | |
| Lift cylinder / 2 | 2 – 5.9" x 30" |
| Bucket cylinder / 1 | 1 – 7.1" x 21.25" |
| Control valve | 2-spool type |
| Control positions: | |
| Boom | Raise, hold, lower, and float |
| Bucket | Tilt-back, hold, and dump |
| Hydraulic cycle time (rated load in bucket) | |
| Raise | 5.7 s |
| Dump | 1.8 s |
| Lower (Empty) | 3.1 s |
Service Refill Capacities
Service Refill Capacities
| Cooling system | 17.4 US gal |
| Fuel tank | 94.8 US gal |
| Engine | 10.8 US gal |
| Hydraulic system | 34.8 US gal |
| Axle (front) | 15 US gal |
| Axle (rear) | 15 US gal |
| Transfer case | 10.6 US gal |
| DEF tank | 15.9 US gal |
ENGINE
- Engine, Komatsu DBA127
- Komatsu Diesel Particulate Filter
- Alternator, 24 V/140 A
- Starting motor, 24 V/11.0 kW
- Maintenance free batteries, 2 x 12 V / 136 A
- Engine air intake pre-cleaner with extension
CAB
- Seat, air suspension type with reclining
- Seat mounted 5-way adjustable console R.H.
- Electronic pilot control fingertip control with directional selector switch, two levers
- ROPS/FOPS (ISO 3471/ISO 3449) cab
- High-definition color monitor
- Angle feedback joystick steering (AFJS)
- Auto air conditioner
- Multifunction Audio
- DC12 V electrical outlets
- Floor mat
- Rain visor
- Rear defroster (electric)
- Front wiper (with washer and intermittent)
- Machine monitor with trouble shooting function
- Rear window washer and wiper
- Seat belt
- Large utility space
- Cup holder
LIGHTING SYSTEM
- Rear working lamps on grill, LED, L.H. and R.H. side, 2 lamps
- Rear working lamps, LED, L.H. and R.H. side, 2 lamps
- Additional rear working lamps on platform, LED, L.H. and R.H. side, 2 lamps
- Front working lamps, LED, L.H. and R.H. side, 4 lamps
- Side working lamps, LED, L.H. and R.H. side, 2 lamps
- Stop and tail lamps, LED and turn signal lamps
- Headlamps, LED, L.H. and R.H. side
- Directional signal
- Hazard lamps
- Back-up lights, LED
SAFETY EQUIPMENT
- Service brakes, wet disc type
- Back-up alarm
- Electric controlled mirror with heater
- Rearview monitoring system
- Horn, electric
- Parking brake, electric
- Anchorage points for tie off
- Handrails for platform
- Handrails for roof
- Front frame step for cleaning window
- Secondary steering
- Rear object detection system
TIRES
- 26.5R25 (L-3)
OTHER
- Engine shutdown secondary switch
- Radiator, wide core
- Radiator mask, swing out
- Komatsu hydraulic mechanical transmission (KHMT)
- Loader linkage with standard boom
- 2-spool valve for boom and bucket controls
- Counterweight, standard
- Additional counterweight
- Lift cylinders and bucket cylinder
- Electronically controlled suspension system
- Remote bucket positioner, in-cab adjustable, three positions
- Remote boom positioner, in-cab adjustable
- Auto idle stop timer setting
- Auto shift control
- Battery disconnect switch
- Hydraulic-driven fan with automatic reverse rotation
- Vandalism protection
- Front fenders with extensions
- Rear full fenders
- Komtrax
- ECO guidance
- Fuel pre-filter with water separator
- Limited slip differential (front and rear)
CAB
- Multifunction mono-lever loader control with transmission F-N-R switch
- Steering wheel, tiltable, telescopic
TIRES
- 875/65R29 (L-3)
OTHER
- 3-spool valve with lever and piping
- Cutting edge (bolt on type)
- Various bucket options
- Various tire options
