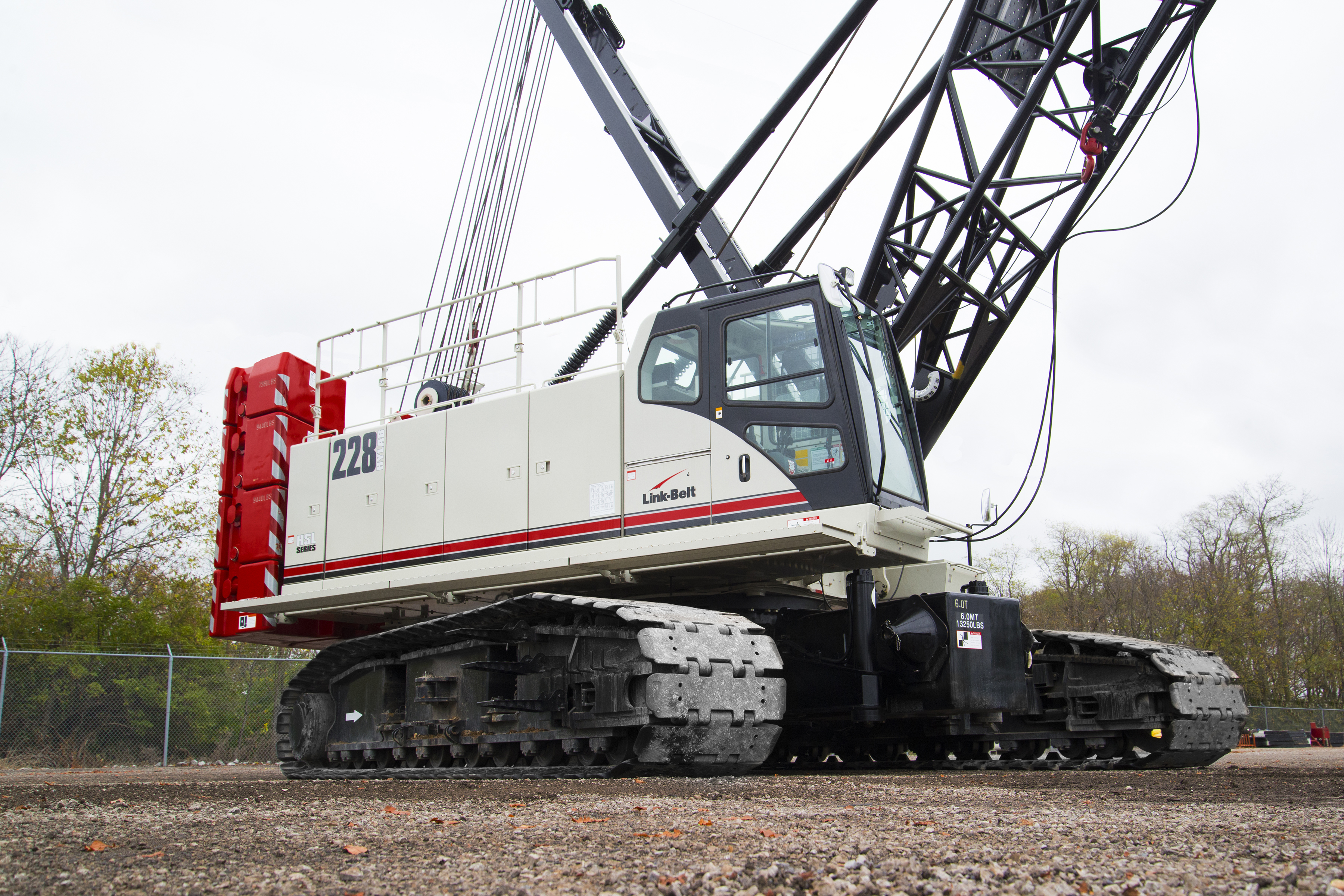

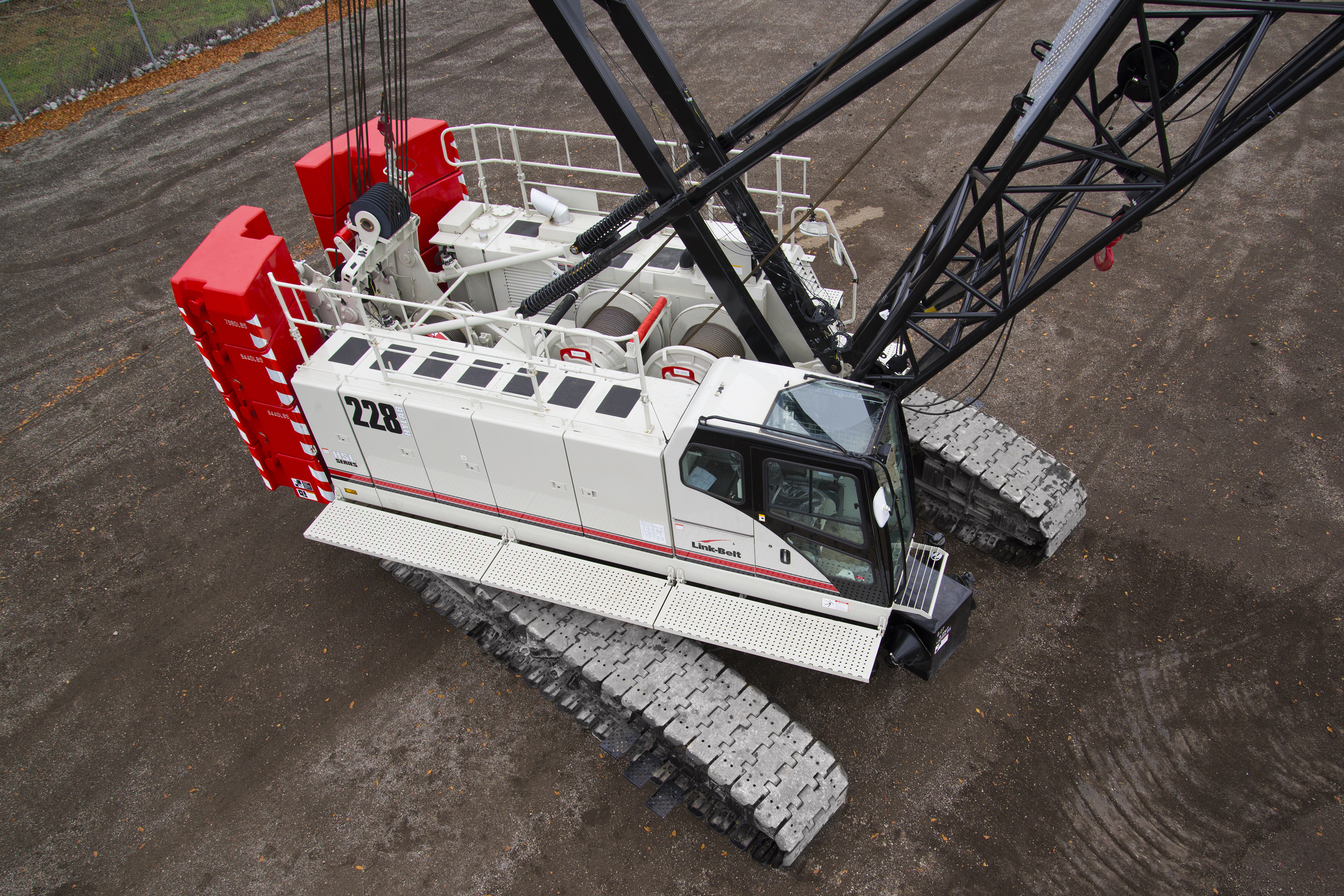

2023 LINK-BELT 228 HSL
- Share
Model
228 HSL
Condition
New
| Base Rating | 130 US-ton @ 12' Tube Boom |
| Boom Lengths | 45'-235' (w/10' incr.) |
| Fixed Jib Lengths | 30'-75' (w/15' incr.) |
| Fixed Jib Offsets | 5, 15, & 25 degrees |
| Maximum Tip Height (Fixed Jib) | Tube = 281' |
| Engine Make & Model | Cummins QSB 6.7 Tier 4 Final |
| Horsepower | 270 hp @ 2000 rpm |
| Maximum Hoist Pull / Speed | 44,565lbs / 348 ft/min |
| Counterweight Option 5 | 79,650 lbs Upper + 26,500 lbs Lower |
| Working Weight | 235,041 lbs |
| Main Transport Load | 74,225 without side frames, 119,541 lbs with side frames |
